Wood Crusher / Sawdust Crusher
Wood Crusher / Sawdust Crusher - 图片 2
Wood Crusher / Sawdust Crusher - 图片 3
Wood Crusher / Sawdust Crusher - 图片 4

Wood Crusher / Sawdust Crusher

Our Promise

  • 复选标记 Reliable quality with strict testing standards and durable performance.
  • 复选标记 Factory-direct pricing with flexible customization options.
  • 复选标记 17+ years of experience, global customers in 100+ countries, and responsive one-stop service.
分类： , , , 标签： , , ,

描述

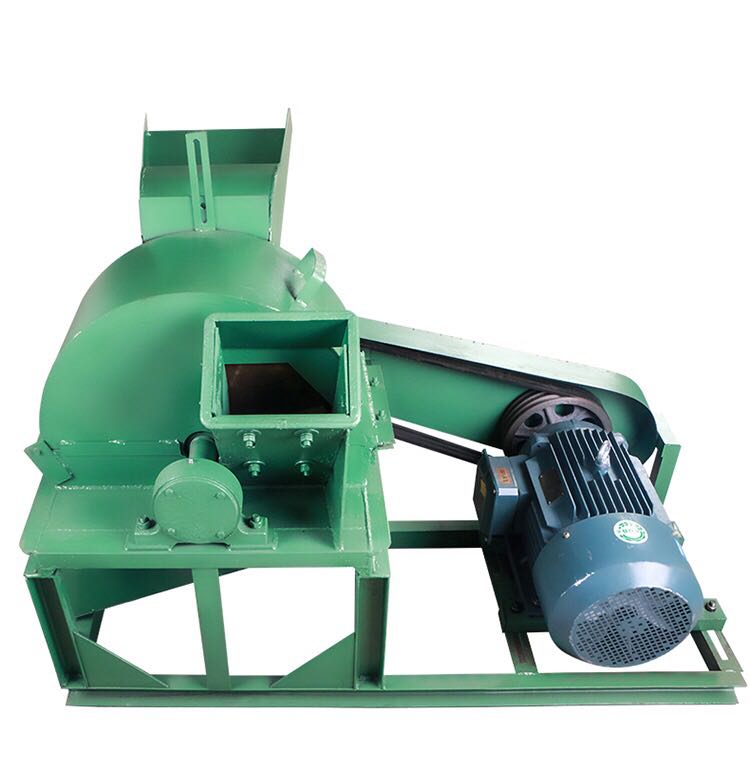

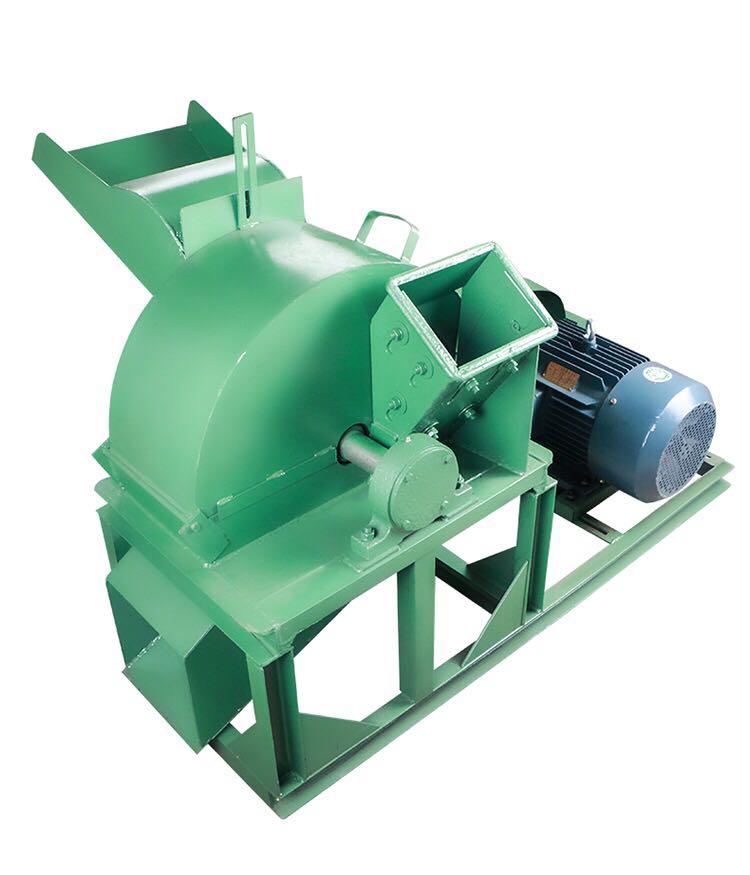

Sawdust Crusher / Wood Crusher Machine / Branch Wood Chipper Crusher Machine

Wood shaving machine, wood chip machine, etc. It is a forestry processing equipment that processes wood materials such as wood and branches into sawdust and sawdust.


✔ Easy Operation   ✔ 600kg-7000kg capacity   ✔ High Efficiency Output

What’s Wood crusher Machine?

Wood chip Crushers are commonly used as shredding equipment for processing sawdust of different finenesses. Our company produces  Wood chip crusher can quickly wood, bark, branches, leaves, thatch, bamboos, straws, and other biomass materials into sawdust, and the production efficiency is very high. This industrial machine shredder is a new type of superfine wood processing equipment.

Wood chip crusher machines also can be called wood shredder, wood grinder, bamboo mill(milling machine), branches pulverizer. The processing size of the raw materials for the high-efficient wood crusher ranges from 1cm to 50cm, and the final sawdust size can be decided according to the customer’s requirements.

Overview

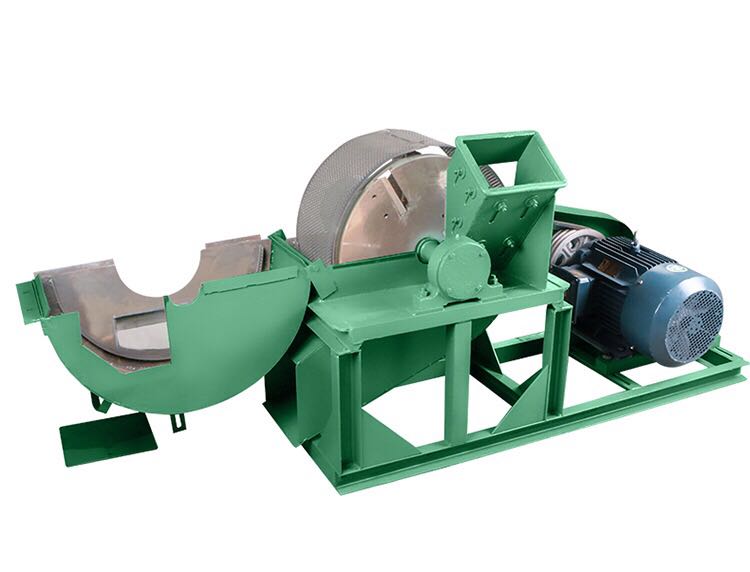

The basic structure:

1.Feed inlet   2.Machine cavity   3.Discharge outlet  4.Mainshaft bearing

5.Machine cavity   6.Machine chassis   7.Copper wire motor  8.Pulley guard   9.strainer mesh(3-30mm)

Raw Materials & Finished Products

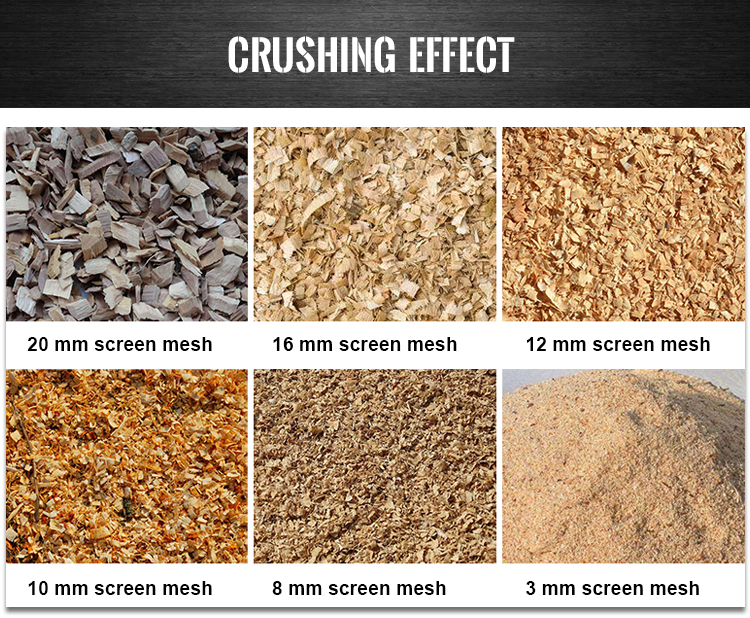

The wood crusher is the most ideal milling equipment for crushing small-diameter raw materials which are no more than 100mm. Such as wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalks, wood fuel, cotton stalks, biomass shells, etc. After crushing, the diameter of the final products could be 3-20mm.

Custom configurations available based on raw materials.

Key Features

Efficient and energy-saving: The wood crusher adopts advanced technology and design, which can process a large amount of wood in a short time while reducing energy consumption. – Environmentally friendly: By converting waste wood into useful resources, wood crushers effectively reduce environmental pollution. – Strong adaptability: Different models of wood crushers can be customized according to user needs to meet the production needs of different scales and types.
Features- Versatility: The wood chipper can not only process multiple types of wood but also adjust the size and shape of the output wood chips as needed. – Strong durability: Made of high-quality steel, it ensures that the equipment can maintain good performance in harsh environments. – Easy to maintain: Reasonable design, easy to clean and repair, and reduced operating costs.
Highlight: Designed for continuous operation with low maintenance cost.

Technical Specifications

Model 420 500 C600 700 900 1000 1200
Cutter Diameter(mm) 420 500 600 610 750 750 1000
Blade Quantity 4 4 4 6 8 8 8
Inlet size(mm) 150*180 180*200 200*230 200*240 250*270 260*280 360*380
Power(kw) 7.5-11 18.5 30 37 55 75 90
Capacity(kg/h) 1000 1500 2000 2500 3000 4000 6000



Need a Custom Solution?

Contact us for capacity, configuration, and production line solutions.
