Charcoal Briquette Machine / Sawdust Briquette Machine

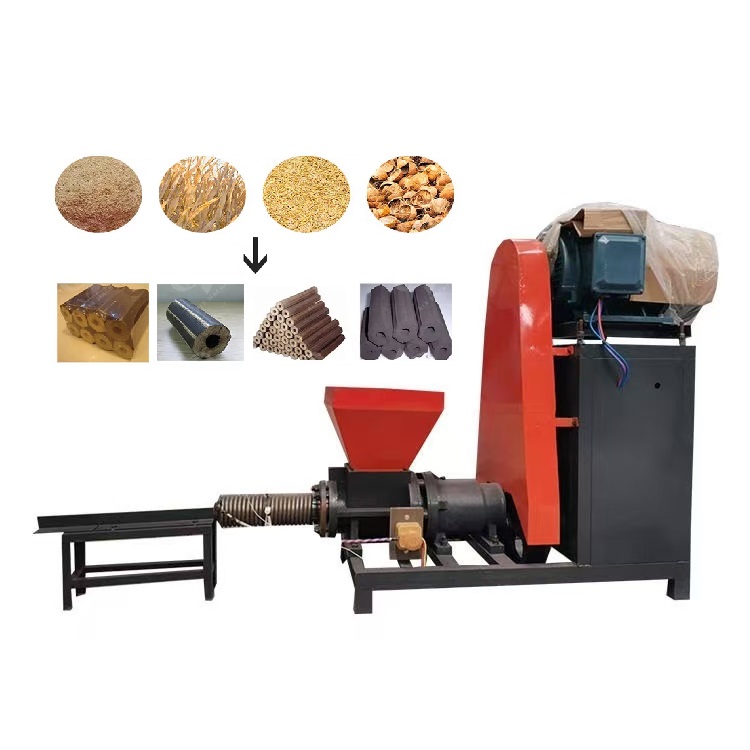

Transform sawdust, rice husks, and wood waste into valuable fuel briquettes.


✔ Easy Operation   ✔ Wide Raw Material Compatibility ✔ High Efficiency Output

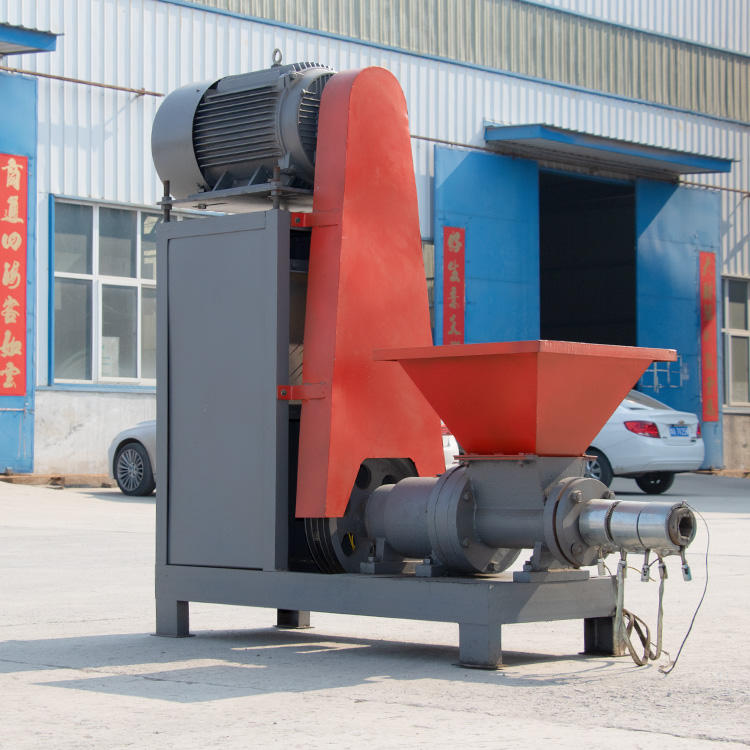

What’s Charcoal Briquette Machine?

Rod making machine is the main equipment to make rod like solid fuel by using wood, rice husk, peanut shell, plant straw and other carbon-containing wood materials (without any additives) under high pressure and high temperature. The machine adopts automatic constant temperature device, stable performance under the set temperature, and has the advantages of reasonable structure, simple operation and maintenance. The solid rod produced by this machine is easy to ignite after carbonization, high calorific value (compared with the general wood more than 20%), less pollutants, easy to store and transport, can make full use of crop residues, achieve waste into treasure, reduce the contradiction of agriculture and forestry energy shortage in Our country.

Pictures

How Our Sawdust Briquette Machine Works

The equipment delivers straightforward, high-efficiency briquette production via full automation, requiring little on-site supervision. The operational procedure is outlined as follows:
Material Feeding:
Treated raw materials are introduced to the equipment hopper, and a screw conveyor transfers the material to the pre-charging compartment.
Thermal Treatment and Compression:
Raw materials enter the primary pressing chamber equipped with heating coils. Operating temperatures ranging from 280°C to 380°C soften the native lignin contained within biomass feedstock. A high-torque screw auger applies extreme compressive force to consolidate the material.
Product Forming:

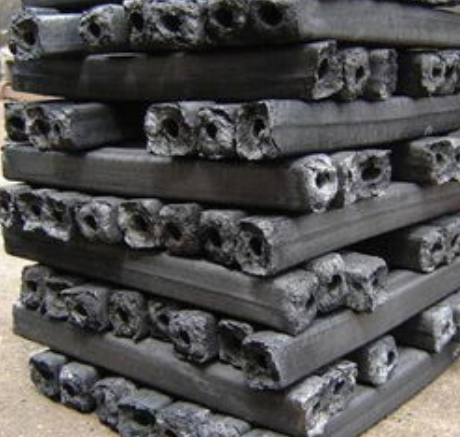

Heated and compressed biomass is extruded through a custom engineered forming die, yielding rigid, high-density briquettes with a central borehole to facilitate consistent combustion performance.
Cooling and Length Trimming:
Extruded briquette products undergo cooling post-discharge. They can be cut to specified lengths, making them suitable for packaging, commercial distribution, or secondary carbonization processing.

Key Advantage

1. The machine has the advantages of reasonable design, reliable quality, simple structure, convenient operation, small size, small occupation area, labor saving and electricity saving.
2. The auto-control electric heating device can adjust the dry humidity of the materials, ensure the stability and improve the working efficiency.
3. The main parts of the machine with a kind of special wear-resistant material can be continuously produce.
4. The machine is suitable for all kinds of raw materials of biomass briquetting with less energy consumption and high efficiency.

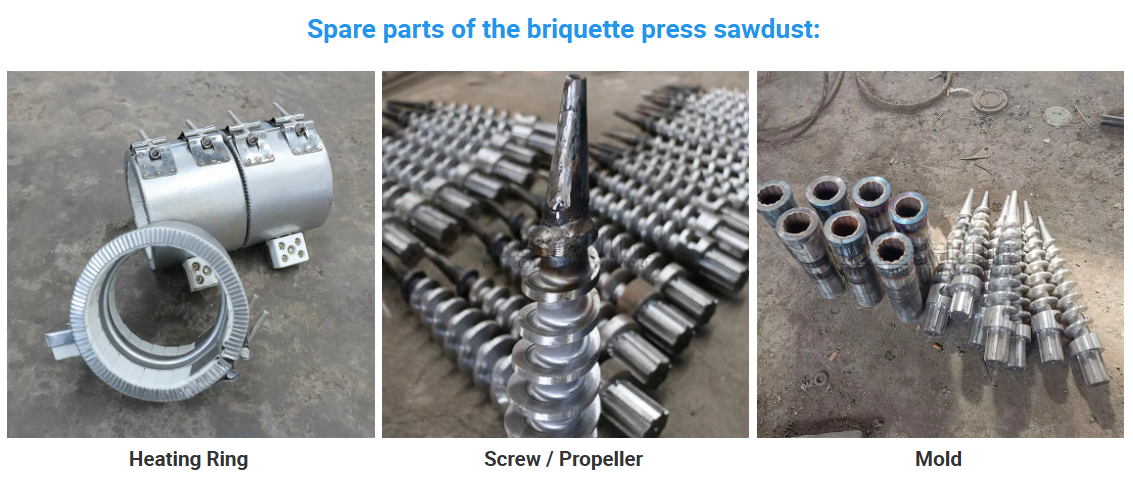

5. The spiral conveyor of the sawdust briquette machine is made of high-quality 35cr steel and undergoes heat treatment, resulting in high hardness, toughness, and excellent wear resistance. Can be continuously produce.

Highlight: Designed for continuous operation with low maintenance cost.

Parameters

Model
Power
Capacity
Wight
Package Size
50A
15kw
260-280 kg/h
750kg
1.6*0.65*1.4 m
50B
18.5kw
300-320 kg/h
800kg
1.7*0.65*1.4 m
50C
22kw
320-340 kg/h
900kg
1.8*0.7*1.45 m
50D
30kw
400 kg/h
1000kg
1.95*0.9*1.55 m

Need a Custom Solution?

Contact us for capacity, configuration, and production line solutions.
