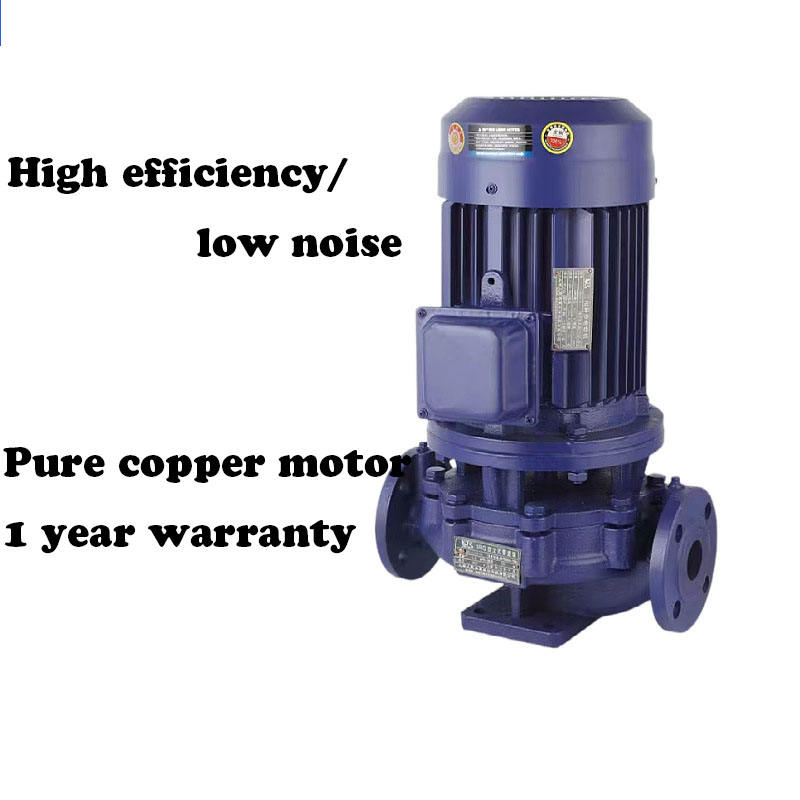

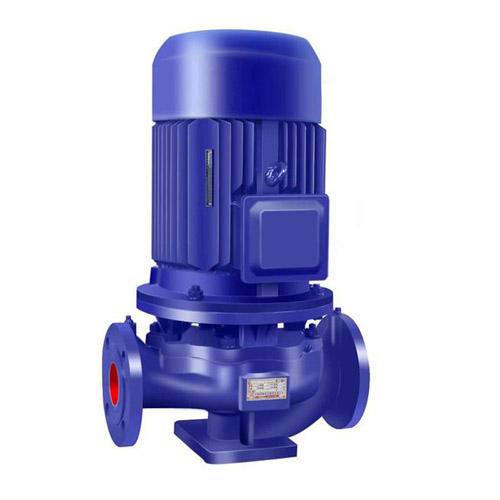

ISG Vertical Inline Single Stage Centrifugal Water Pump
ISW series single stage end suction horizontal inline centrifugal pump can be designed and manufactured into IRG hot water pump and IHG pipeline chemical pump.
FAQ (Click here)
Q：How do I select the correct model?
A：Please provide key parameters including flow rate, head, medium type, application, and voltage. Our engineering team will evaluate your working conditions and recommend the most suitable model.
Q：Do you support bulk customization?
A：Yes. We provide OEM & ODM services. For bulk orders, please contact us for wholesale pricing and customized solutions.
Q：Are your prices competitive?
A：As a direct manufacturer, we offer factory-direct prices with stable quality, no middleman markup.
Q：What are your shipping times?
A：Standard models: normally shipped within 3 working days.Customized models: generally 7–10 working days.
Q：How is quality ensured?
A：All products are 100% tested before delivery. Our quality system complies with ISO 9001, CE, and other international certifications.
Q：What warranty do you provide?
A：We offer a 1-year warranty against manufacturing defects. Free repair or replacement is provided for quality-related issues, excluding wearing parts such as seals and bearings.
Our Promise
- Reliable quality with strict testing standards and durable performance.
- Factory-direct pricing with flexible customization options.
- 17+ years of experience, global customers in 100+ countries, and responsive one-stop service.
描述
Product Description

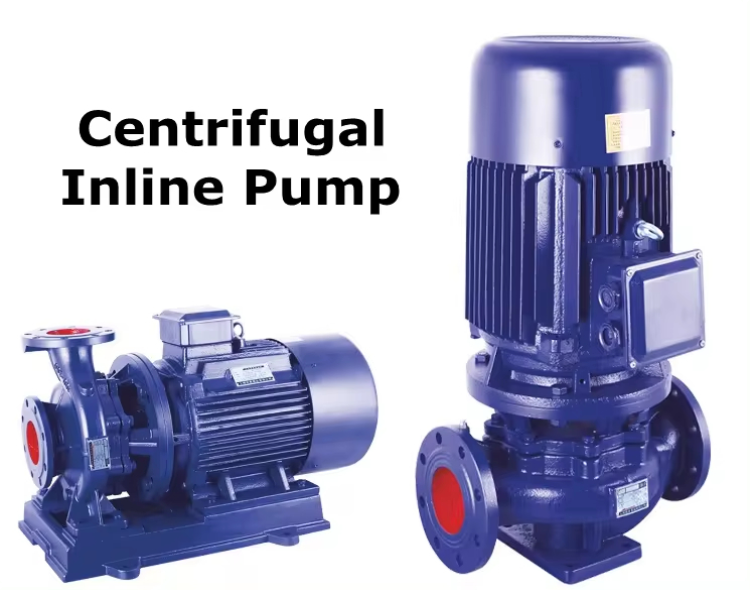

ISG ISW Series pipeline pump: Vertical pipeline and horizontal close-coupled centrifugal pumps, designed for transferring water and liquids with similar physical and chemical properties. Suitable for industrial and municipal water supply and drainage, high-rise building water supply, garden irrigation, fire-fighting pressure boosting, long-distance water delivery, HVAC refrigeration circulation, bathroom hot and cold water circulation and other applications.
Product Details
- ✔
Vertical Horizontal Structure: Designed for easy installation in pipelines, saving space and reducing costs. - ✔
Compact Design: Small footprint for efficient use of space. - ✔
Cast Iron & Ductile Iron Components: High-quality materials ensure durability and longevity. - ✔
Stainless Steel Material: Ideal for corrosive liquid applications. - ✔
Efficient Operation: Smooth operation due to balanced radial loads and compact structure. - ✔
Customization: Flow rate, head, voltage, high-temperature resistant and explosion-proof variants available upon request. - ✔
Ideal for clean water and liquids with comparable physical and chemical properties.
Technical Specifications
| Model | Flow (m³/h) | Head (m) | Speed (r/min) | Power (kW) |
|---|---|---|---|---|
| ISG50-100 | 12.5 | 12.5 | 2900 | 1.1 |
| ISG50-125 | 12.5 | 20 | 2900 | 1.5 |
| ISG50-160 | 12.5 | 32 | 2900 | 3 |
| ISG50-200 | 12.5 | 50 | 2900 | 5.5 |
| ISG50-250 | 12.5 | 80 | 2900 | 11 |
| ISG65-100 | 25 | 12.5 | 2900 | 1.5 |
| ISG65-125 | 25 | 20 | 2900 | 3 |
| ISG65-160 | 25 | 32 | 2900 | 4 |
| ISG65-200 | 25 | 50 | 2900 | 7.5 |
| ISG65-250 | 25 | 80 | 2900 | 15 |
| ISG65-315 | 25 | 125 | 2900 | 30 |
| ISG80-100 | 50 | 12.5 | 2900 | 3 |
| ISG80-125 | 50 | 20 | 2900 | 5.5 |
| ISG80-160 | 50 | 32 | 2900 | 7.5 |
| ISG80-200 | 50 | 50 | 2900 | 15 |
| ISG80-250 | 50 | 80 | 2900 | 22 |
| ISG80-315 | 50 | 125 | 2900 | 37 |
| ISG80-350 | 50 | 150 | 2900 | 55 |
| ISG100-100 | 100 | 12.5 | 2900 | 5.5 |
| ISG100-125 | 100 | 20 | 2900 | 11 |
| ISG100-160 | 100 | 32 | 2900 | 15 |
| ISG100-200 | 100 | 50 | 2900 | 22 |
| ISG100-250 | 100 | 80 | 2900 | 37 |
| ISG100-315 | 100 | 125 | 2900 | 75 |
| ISG100-350 | 100 | 150 | 2900 | 90 |
| ISG125-100 | 160 | 12.5 | 2900 | 11 |
| ISG125-125 | 160 | 20 | 2900 | 15 |
| ISG125-160 | 160 | 32 | 2900 | 22 |
| ISG125-200 | 160 | 50 | 2900 | 37 |
| ISG125-250 | 160 | 80 | 2900 | 55 |
| ISG125-315 | 160 | 125 | 2900 | 90 |
| ISG150-125 | 160 | 24 | 2900 | 11 |
| ISG150-160 | 160 | 32 | 2900 | 22 |
💡 For complete specifications and model selection guidance, please feel free to contact our sales team.

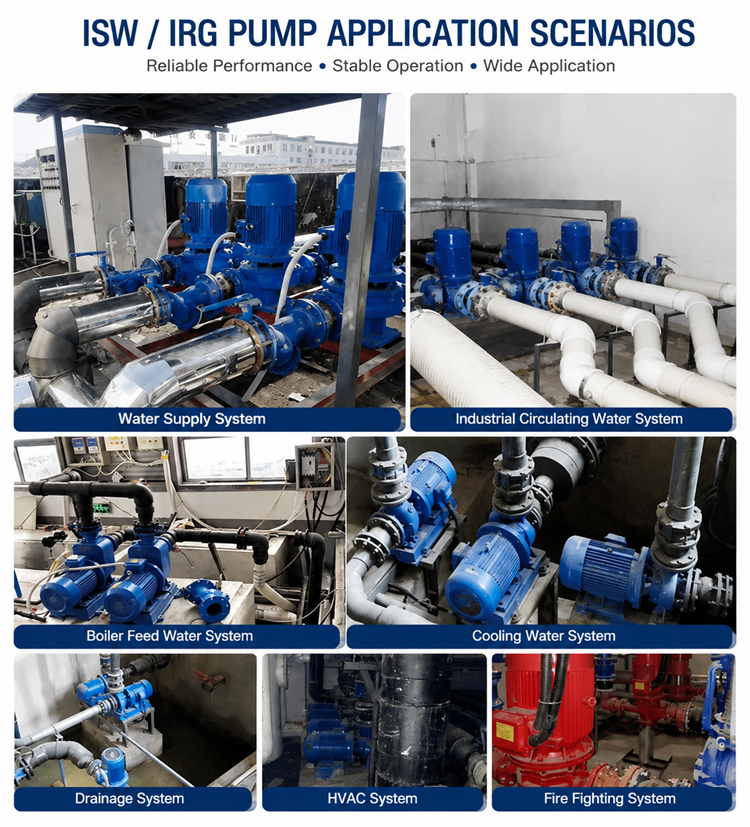

Applications
- Industrial and urban water supply and drainage
- Pressurized water supply in high-rise buildings
- Garden sprinkler & agricultural irrigation
- Fire pressurization and booster systems
- Hot water circulation, HVAC refrigeration cycles, and bathrooms
- All kinds of water supply equipment & auxiliary boilers
