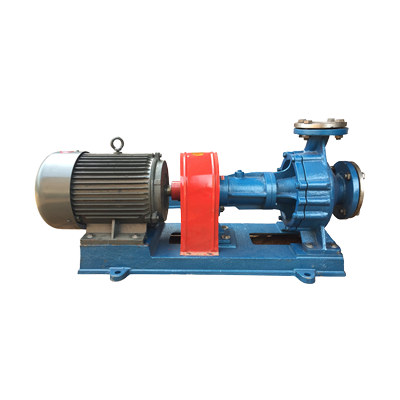

RY Series Hot Oil Pump

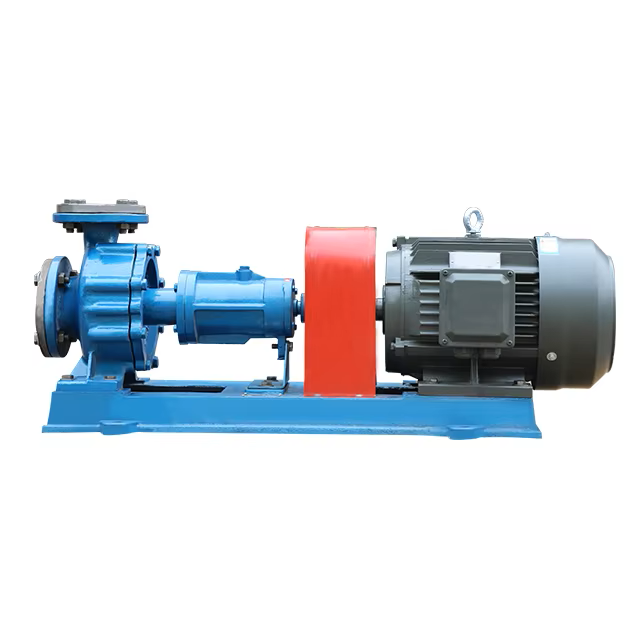

RY Series Hot Oil Pump - 图片 2

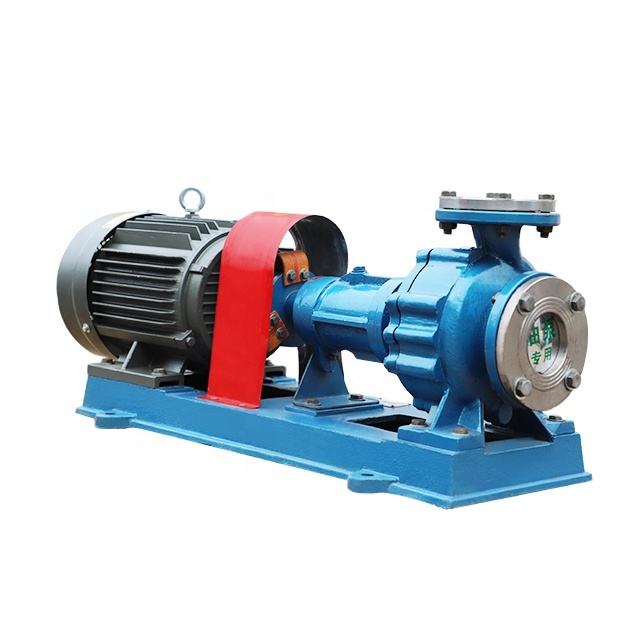

RY Series Hot Oil Pump - 图片 3

RY Series Hot Oil Pump

RY series air-cooled high temperature heat conduction oil pump is mainly used for conveying weak rotten high temperature liquid without solid particles. The operating temperature is less than 370℃



Our Promise

  • 复选标记 Reliable quality with strict testing standards and durable performance.
  • 复选标记 Factory-direct pricing with flexible customization options.
  • 复选标记 17+ years of experience, global customers in 100+ countries, and responsive one-stop service.
分类： 标签： , ,

描述

Product Description

RY series hot oil pump has been widely used in the heating system of heat carrier in China. It has entered various industrial fields such as petroleum, chemical industry, rubber, plastics, pharmaceutical, textile, printing and dyeing, road building, food, and other industrial fields. It is mainly used to transport weakly corrosive high-temperature liquids without solid particles. The operating temperature is ≤ 370 ℃, making it an ideal hot oil circulating pump.

Key Parameter Centrifugal Pump Specifications
Material Ductile Iron / Stainless Steel
Flow Rate 1 – 800 m³/h
Head 10 – 130 m
Liquid Type Hot oil / Thermal oil
Temperature -20°C – 350°C
Voltage 110V / 220V / 380V / 400V – 480V (Single / 3 Phase)
Warranty 12 Months

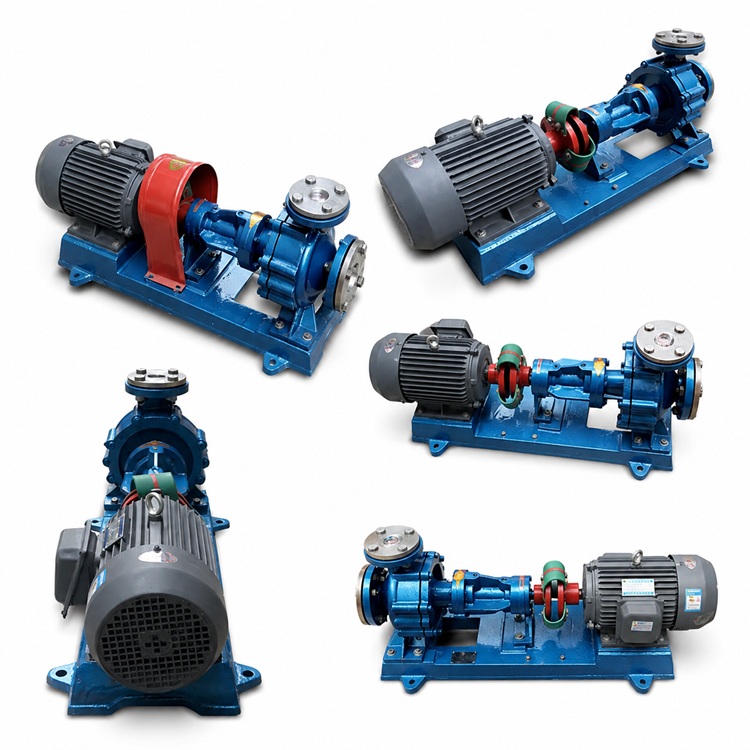

RY series hot oil pump

Product Details

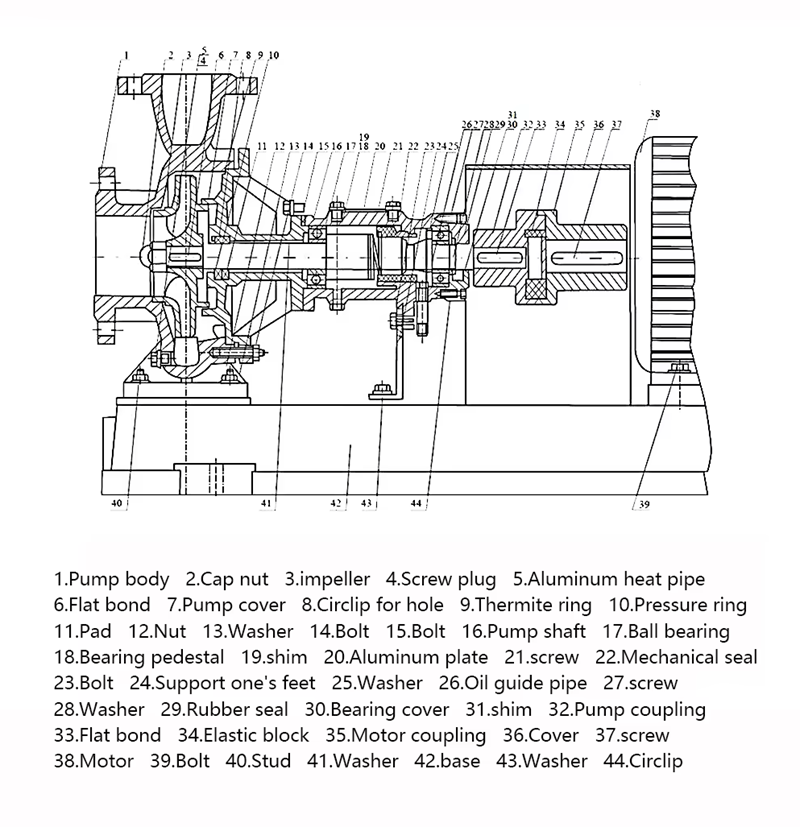

Product Details 1

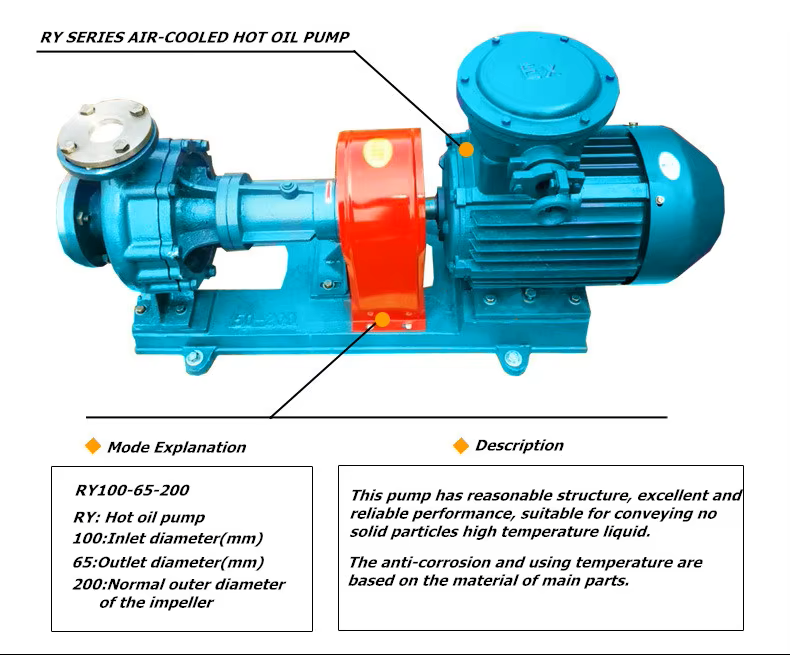

Product Details 2

★ Key Advantages & Performance

RY series high-temperature thermal oil pump features a reasonable structure, excellent performance, and reliable operation. It is specifically engineered for transferring lubricating oils containing no solid particles and fibers with temperatures up to 300°C, and a viscosity range of 5-1500 cst (or other liquids similar to lubricating oils). It is also highly ideal for hydraulic transmission systems. By adjusting and reducing the pump speed, it can efficiently transport media with viscosities reaching up to 5 × 10⁵ cst. Its corrosion resistance and peak operating temperatures seamlessly match the top-tier materials of the main components.

Technical Specifications

Model Flow (m³/h) Head (m) Power (kW) Speed (r/min) Shaft Dia. (mm)
32-32-160 3 27 0.53 2900 30
32-32-200 6 28 0.85 2900 50
40-25-160 10 28 1.72 2900 45
50-32-160 12.5 30 1.90 2900 57
50-32-200 12.5 50 3.78 2900 45
50-32-200 18 40 3.95 2900 50
50-32-200A 16 32 3.35 2900 42
50-32-250 12.5 80 6.20 2900 44
50-32-250 18 70 7.60 2900 45
50-32-250A 16 60 6.20 2900 42
65-50-160 20 32 3.17 2900 55
65-40-200 25 50 5.87 2900 58
65-40-200 30 48 6.30 2900 62
65-40-200A 25 35 4.00 2900 59
65-40-200B 40 32 6.37 2900 55
65-40-250 25 80 10.30 2900 53
65-40-250 60 72 19.60 2900 60
65-40-250A 43 60 12.80 2900 55
65-40-315 25 125 30.40 2900 56
65-40-315A 45 100 23.60 2900 52
80-50-200 80 53 16.50 2900 70
80-50-200 100 50 18.40 2900 74
80-50-200A 94 44 16.00 2900 70
80-50-200B 87 38 13.80 2900 65
80-50-200C 80 32 11.80 2900 59
80-50-250 80 85 28.90 2900 64
80-50-250 100 80 32.06 2900 68
80-50-250A 95 72 29.00 2900 64
80-50-250B 90 65 26.20 2900 61
80-50-315 80 130 45.00 2900 63
80-50-315 100 125 50.06 2900 68
80-50-315A 95 113 45.23 2900 64
125-100-200 200 50 35.40 2900 77
125-100-200A 178 40 26.60 2900 73
125-100-250 200 70 47.00 2900 80
125-100-250A 190 63 41.60 2900 78
150-150-200 350 50 60.00 2900 80

💡 For complete specifications and model selection guidance, please feel free to contact our sales team.

Applications

  • ✔ Petroleum and Chemical Industry
  • ✔ Oil Transport & Storage
  • ✔ Synthetic Fiber Industry
  • ✔ Textile Printing and Dyeing
  • ✔ Plastics and Rubber Industry
  • ✔ Paper & Pulp Processing
  • ✔ Wood & Timber Processing
  • ✔ Construction Industry

Additionally, it is widely utilized in the machinery industry, food processing, pharmaceutical production, hot oil furnace oil supply systems, and hot oil heating circulation systems.

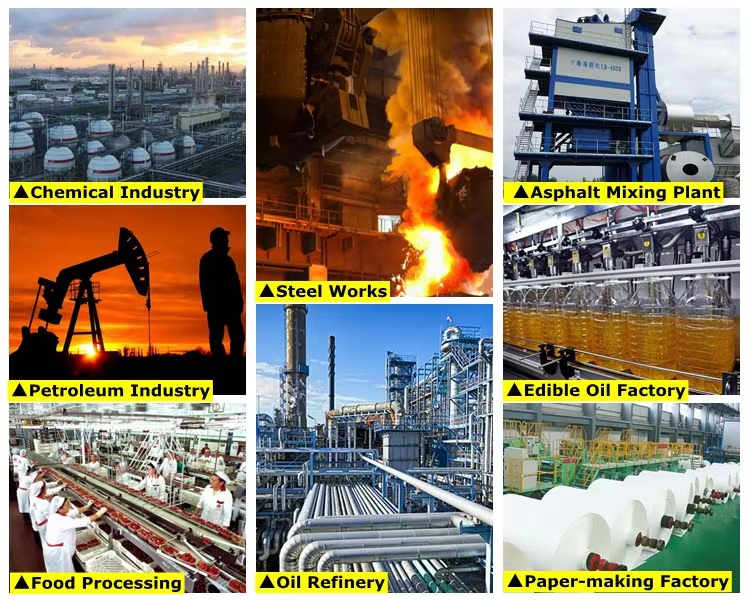

Application Fields
