Carbonization Furnace  / Wood charcoal Carbonization Furnace

The horizontal charcoal furnace is the carbonization equipment for processing various charcoal.

What’s Carbonization Furnace?

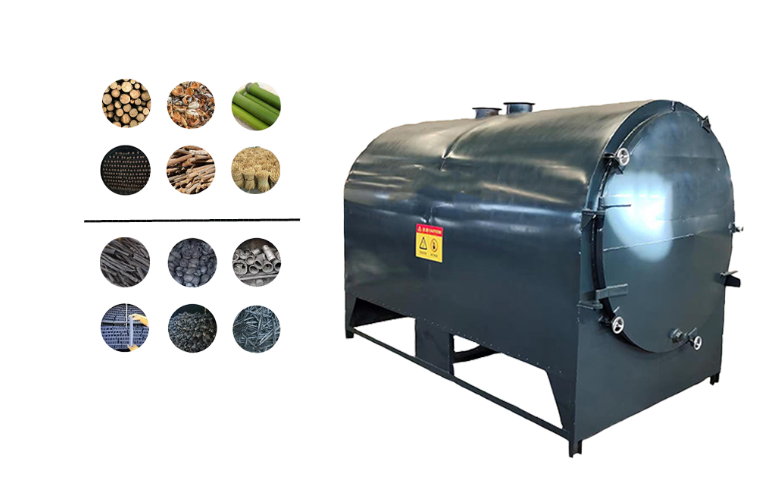

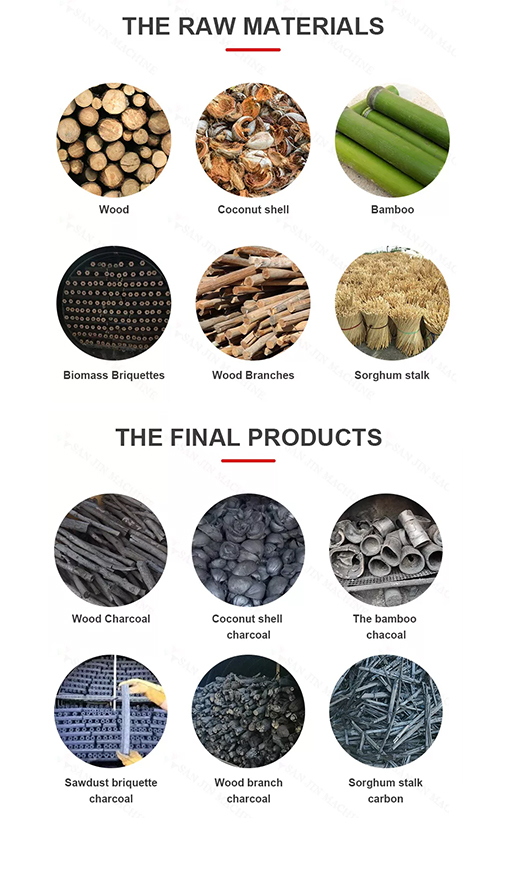

The horizontal charcoal furnace is the carbonization equipment for processing various charcoal. This is another type of air-flow type charcoal making machine, which can not only carbonize wood chips, branches, bamboo, coconut shells, and logs, but also biomass briquettes, such as sawdust briquettes.

The main structure of the horizontal carbonization furnace includes an outer shell, an inner liner, a pipe, and smoke. Gas purification equipment, etc. Due to its large output and simple operation, this charcoal machine is very popular among charcoal processors.

It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world’s most advanced carbonization furnace.

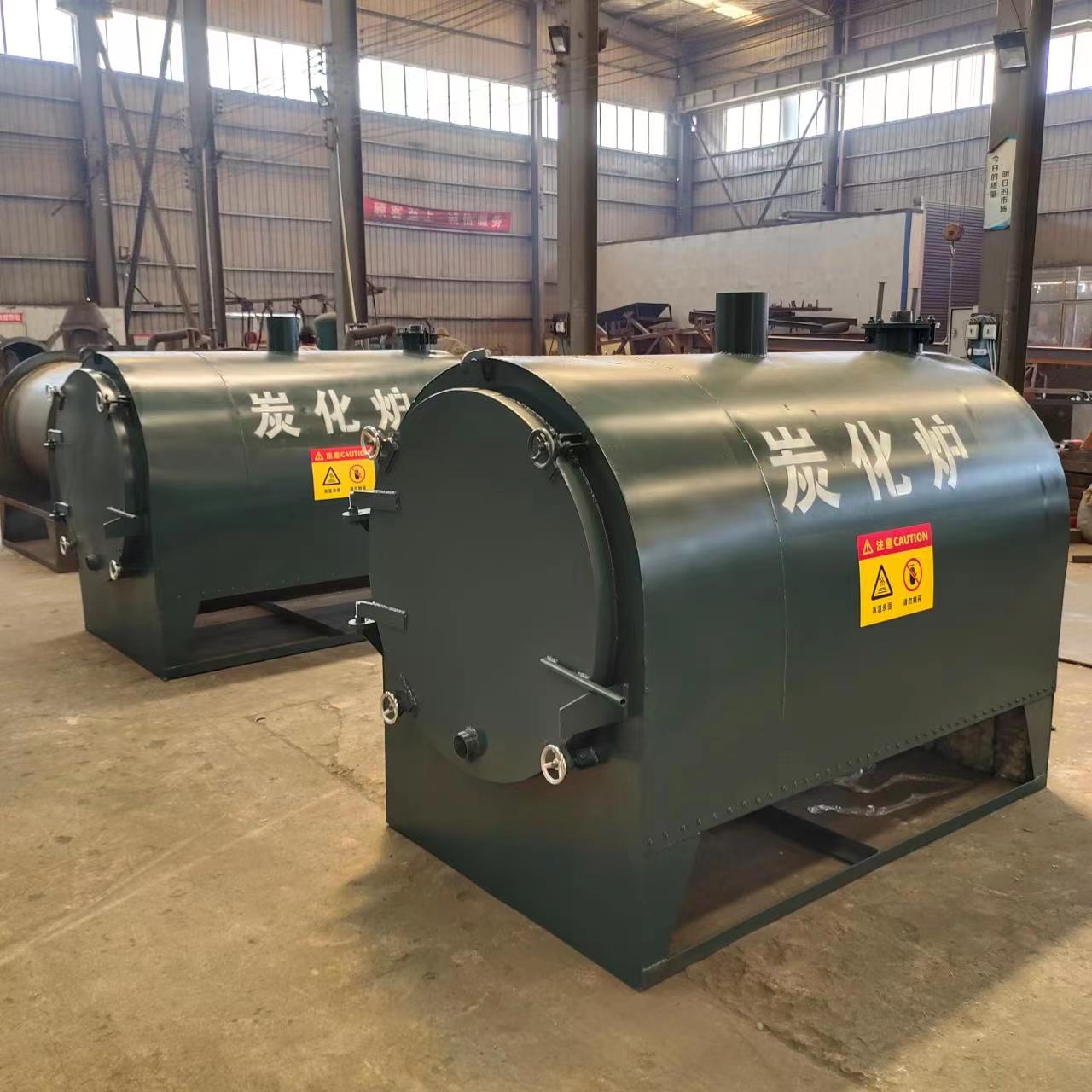

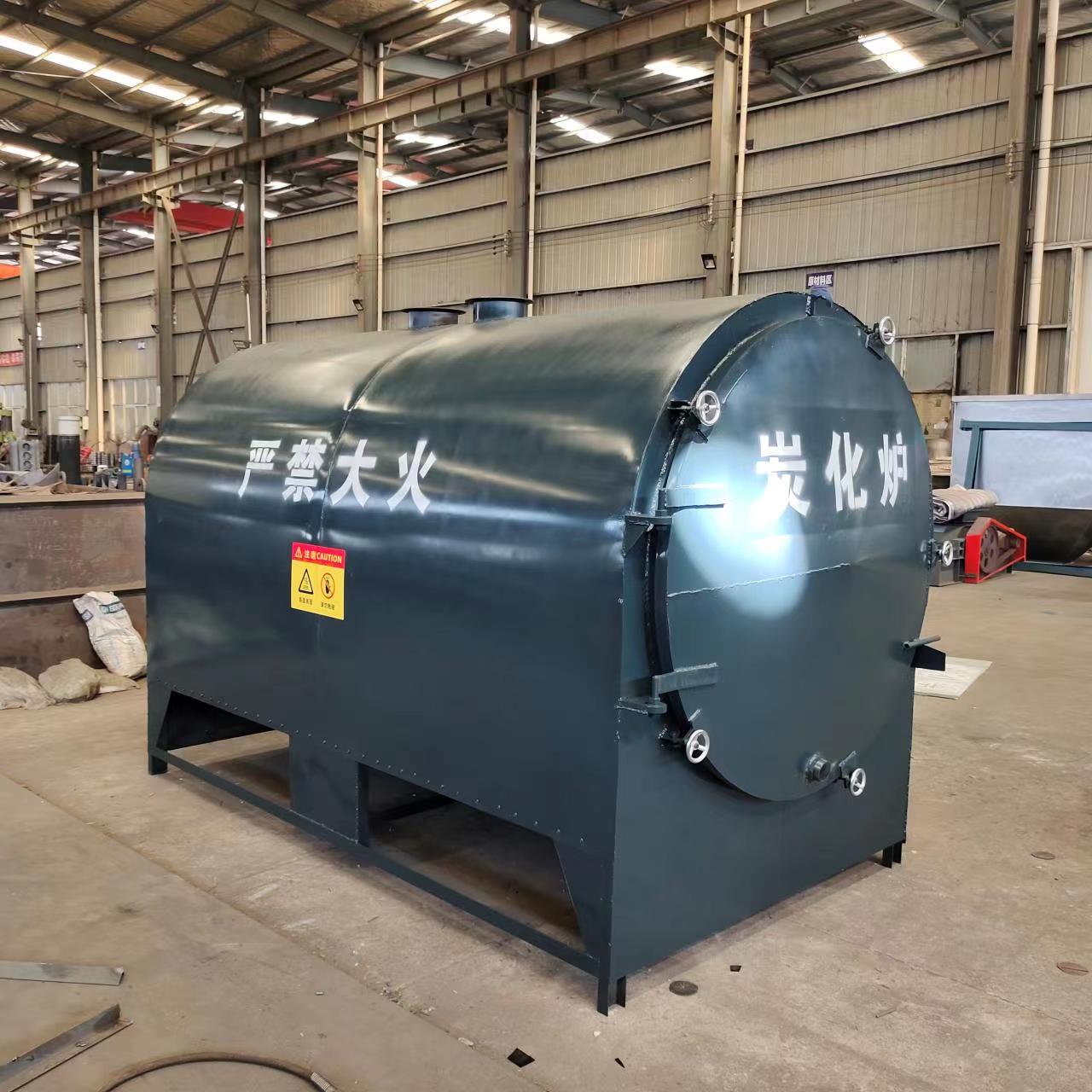

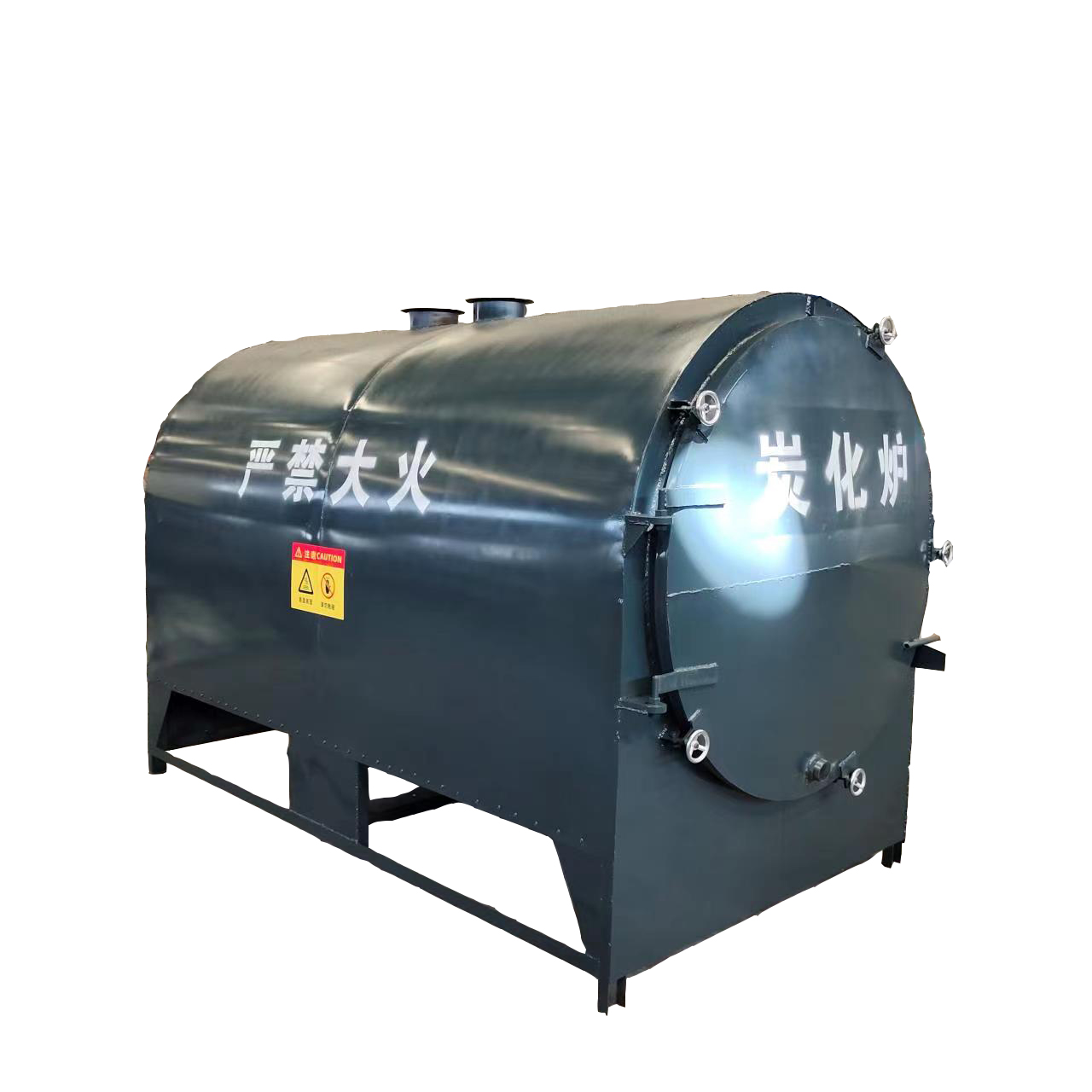

Pictures

Features

1.Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times.
2.The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher.
3.The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel.
4.Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler.
5.Carbonization furnace to end charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient and convenient.
6. Customers to buy this carbonization furnace really reached a simple, labor-intensive, easy to install charcoal out of carbon, cooling time greatly reduced, carbonization furnace production can be greatly improved. Carbonization furnace can be customized according to customer requirements.(Materials and working process)

Key Advantage
