Airflow Drying Machine / Airflow Dryer / Biomass Material Pipe Dryer / Airflow Rice Husk Sawdust Dryer

Airflow Dryer, Airflow Drying Machine , is a kind of equipment used to dry the moisture of materials like wood, sawdust, wood chips, rice husks, groundnut shells, wheat straws and other kind of agro-wastes with small size.

What’s Airflow Drying Machine?

Airflow Drying Machine / Airflow dryer is a kind of equipment used to dry the moisture of materials like wood, sawdust, wood chips, rice husks, groundnut shells, wheat straws and other kind of agro-wastes with small size. Ourwood shaving dryer can dry these materials fast with large capacity. This wood shaving dryer is inevitable of the whole production line to make biomass briquettes or charcoal briquettes!

If you have enough outdoor space, you can put the materials in the open air and let the sun and wind dry them naturally. But natural air drying takes much more time than a dryer machine.

This airflow dryer achieves drying effect with high-temperature air flow. It applies to materials whose diameter is less than 3mm, and length is less than 5mm. Rice husk, sawdust and fine wood chips can be fed into the dryer directly, but for larger materials, you need a hammer mill to crush them in advance.

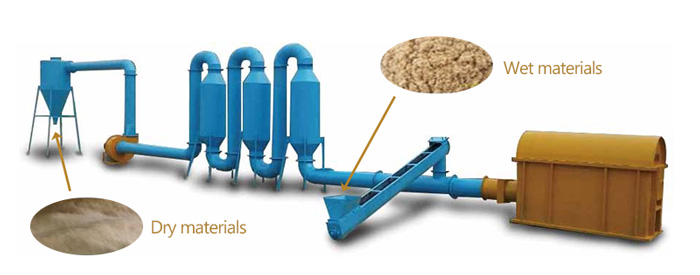

Working principle of airflow dryer

When you feed powder, granule, and sawdust material into the airflow dryer, they are suspended under the function of air blower. In the drying chamber, they are fully mixed with the hot air and get dried quickly. The dried materials has the water content as low as 10%.

Features of airflow dryer

Raw materials available: rice husk, saw dust and crushed wood shaving, branches and wood chips. The diameter should be less than 3mm, and the length should be less than 5mm.
Product efficiency: the temperature of air flow is between 180℃ and 300℃. At the temperature of 180℃, the airflow can lower the moisture content from 30% to 10%.
Power source: firewood, coal, steam and electricity are all available.
Airflow dryer has large capacity, high drying efficiency, small floor space, and low fault rate. It can be applied in food and chemical industry

Custom configurations available based on raw materials.

Key Features

Technical Specifications
